TV Remote Controlled Home Appliances

Description

ABSTRACT:

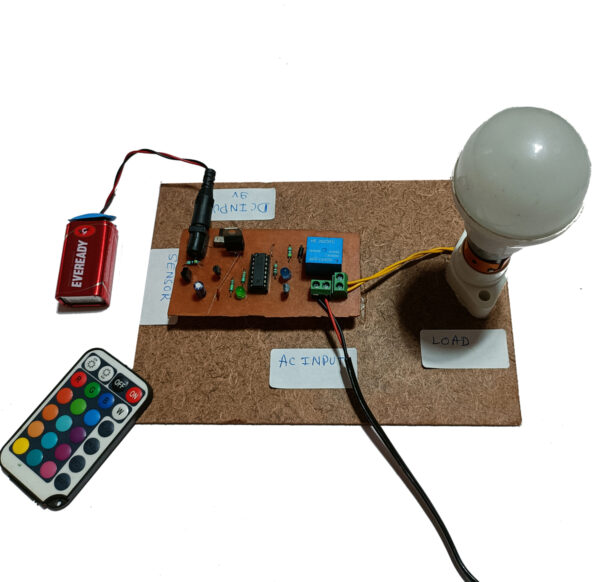

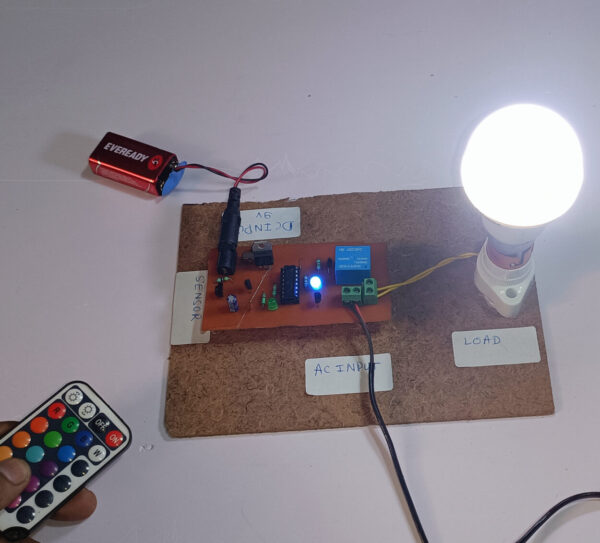

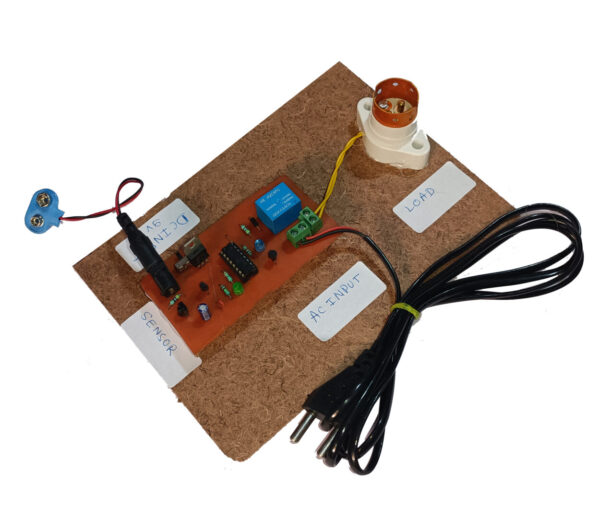

This project aims to control home appliances remotely using a TV remote, IC 4017, and relay module. The project utilizes the principle of infrared (IR) communication to receive signals from a TV remote and decode them to control various household appliances. The IC 4017 acts as a decade counter to sequence through different appliances, while the relay used for switching the appliances on and off.

This project provides a cost-effective and efficient solution for remote appliance control without the need for complex microcontrollers like Arduino.

INTRODUCTION:

In this project, we explore the design and implementation of a TV remote-controlled system for home appliances. The system is designed to offer convenience and ease of use by allowing users to control multiple appliances using a single remote control.

AIM:

The main objective of this project is to develop a TV remote-controlled system that can remotely operate home appliances. The system should be able to receive IR signals from a TV remote control, decode them to identify the desired command, and trigger the appropriate appliance using IC 4017, PNP transistor, TSOP sensor, and relay module.

APPLICATION:

• Home automation: Control lights, fans, air conditioners, etc., with a TV remote control.
• Energy efficiency: Conveniently switch off appliances when not in use, reducing energy consumption.
• Accessibility: Enables individuals with mobility issues to control appliances without physical interaction.

Download Free Project Synopsis

Working Video

Disclaimer:

This is a handmade complete working Models, Projects & Activity kits supported by rough study material to make a suitable projects report by the student. It is using Cardboard/Wooden base, Paper, Foam based board, stationary items, Electronic-Electrical Components, Mechanical & Scientific goods as per the requirement of a particular model.

Colour of product and decoration item may be varying according to availability of material but we make ensure that we will deliver the product with same working, structure and dimensions as describe in product description section.
