Demonstration of Mutual Inductance

Overview:

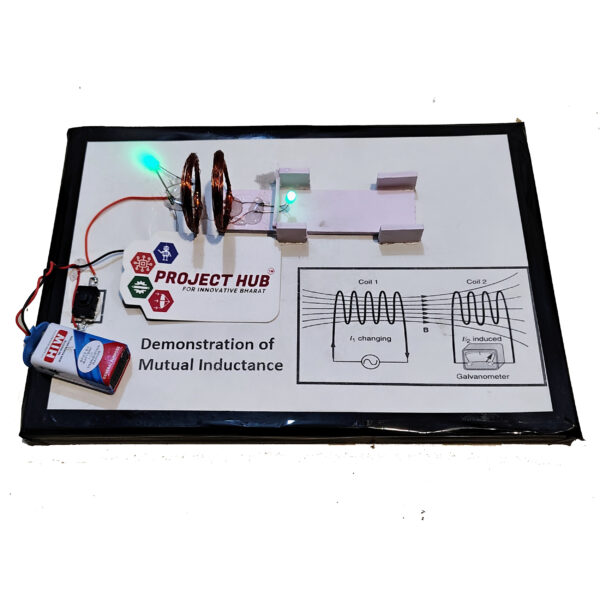

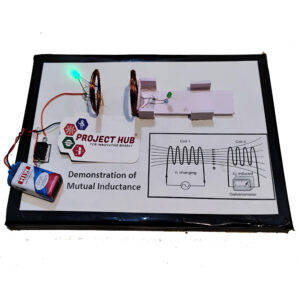

This project demonstrates the concept of mutual inductance and wireless energy transfer using a transmitter and receiver coil setup. The project is built on a hardboard base with a slider mechanism to move the receiver coil closer to or farther from the transmitter coil. As the distance between the coils changes, the receiver’s LED responds by glowing (when near) or turning off (when far), showcasing the principle of electromagnetic induction.

Demo Video :

Components Used:

  1. Hardboard Base: Provides a sturdy platform for the entire setup.
  2. Sunboard Slider: Allows smooth movement of the receiver coil towards or away from the transmitter coil.
  3. Copper Coils (Transmitter and Receiver): The key components for generating and receiving electromagnetic energy.
  4. 2N2222 Transistor: Used to amplify the current in the transmitter circuit for efficient energy transfer.
  5. Resistor (e.g., 470Ω): Regulates the current in the circuit.
  6. LED (Light Emitting Diode): Indicates energy reception at the receiver coil.
  7. Battery and Battery Cap (9V): Powers the transmitter circuit.
  8. Connecting Wires: For assembling the circuit components.

Working Principle:

  1. Transmitter Coil Circuit:
    • The transmitter coil is connected to the battery and 2N2222 transistor to generate an alternating electromagnetic field.
    • This electromagnetic field propagates through the air.
  2. Receiver Coil Circuit:
    • The receiver coil is designed to pick up the electromagnetic field generated by the transmitter coil.
    • When the receiver coil is close to the transmitter coil, mutual inductance occurs, and energy is transferred to the receiver circuit.
    • The LED connected to the receiver coil glows as it receives energy.
    • As the receiver coil moves away, the mutual inductance decreases, and the LED gradually dims and turns off.

Features:

  • Interactive Slider: The sunboard slider enables users to control the distance between the coils, making the demonstration engaging and easy to understand.
  • Wireless Energy Transfer: Demonstrates the principle of wireless energy transfer and mutual inductance effectively.
  • Compact Design: The setup is neatly mounted on a hardboard for portability and ease of use.

Applications:

  • Science fairs and exhibitions.
  • Educational demonstrations of electromagnetic induction.
  • Hands-on learning for students exploring electronics and physics.

Benefits:

  • Simplifies the concept of mutual inductance for beginners.
  • Provides a practical example of wireless energy transfer.
  • Encourages innovation and curiosity in electromagnetic principles.

This Demonstration of Mutual Inductance project is a fantastic tool for explaining the principles of electromagnetic induction and wireless energy transfer in a visually engaging and interactive way.
